Atlas 2.88 m W x 4.95 m D Carport

The Atlas 5000 Carport is a modern, elegant and versatile outdoor shelter designed to provide reliable year-round protection for your vehicle. With its spacious 2.88 m width and 4.95 m depth, it provides a generous covered area for one car while maintaining convenient access. The open four-post design allows easy parking and access from the sides, while the generous clearance provides comfortable vehicle entry and exit.

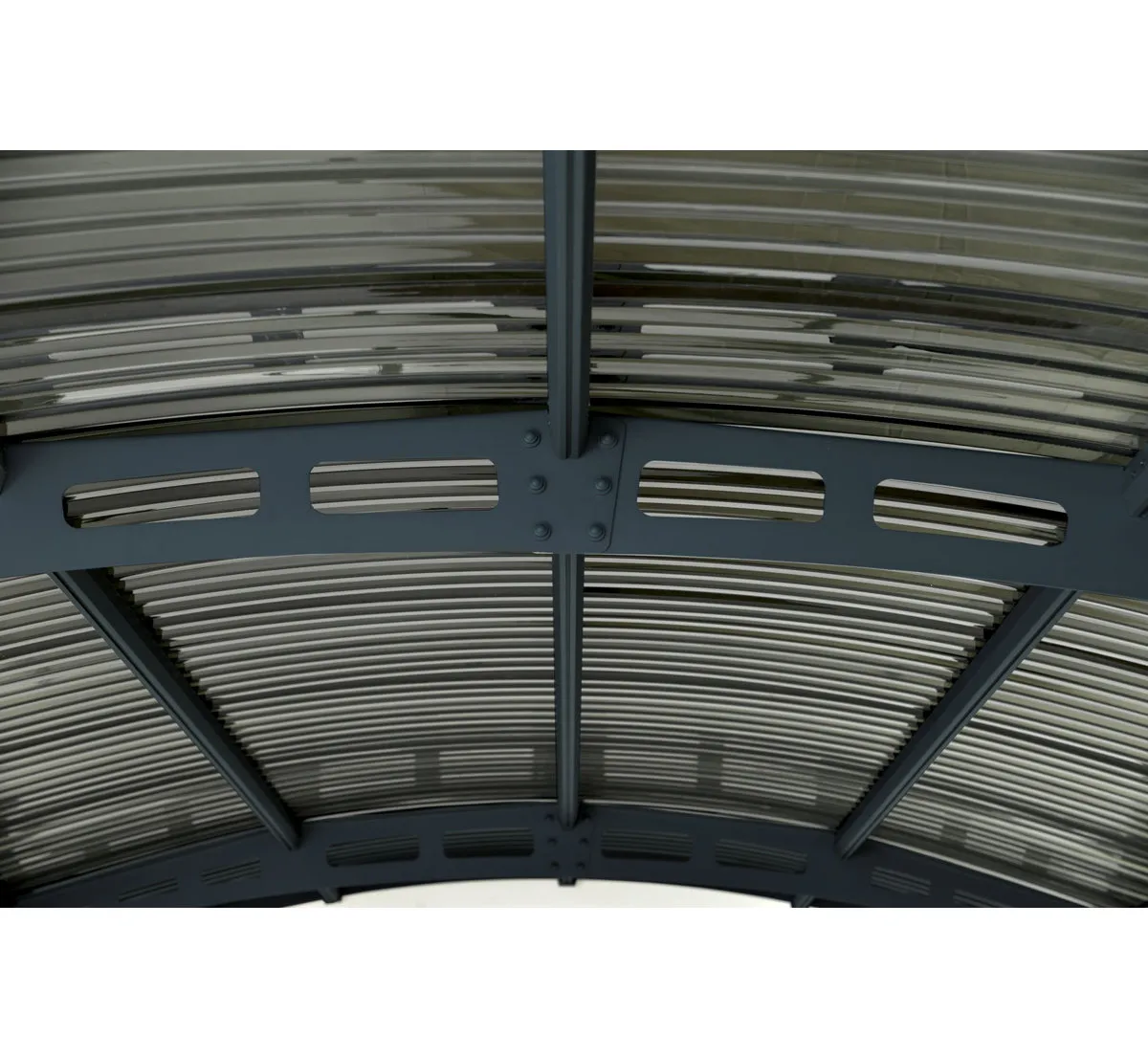

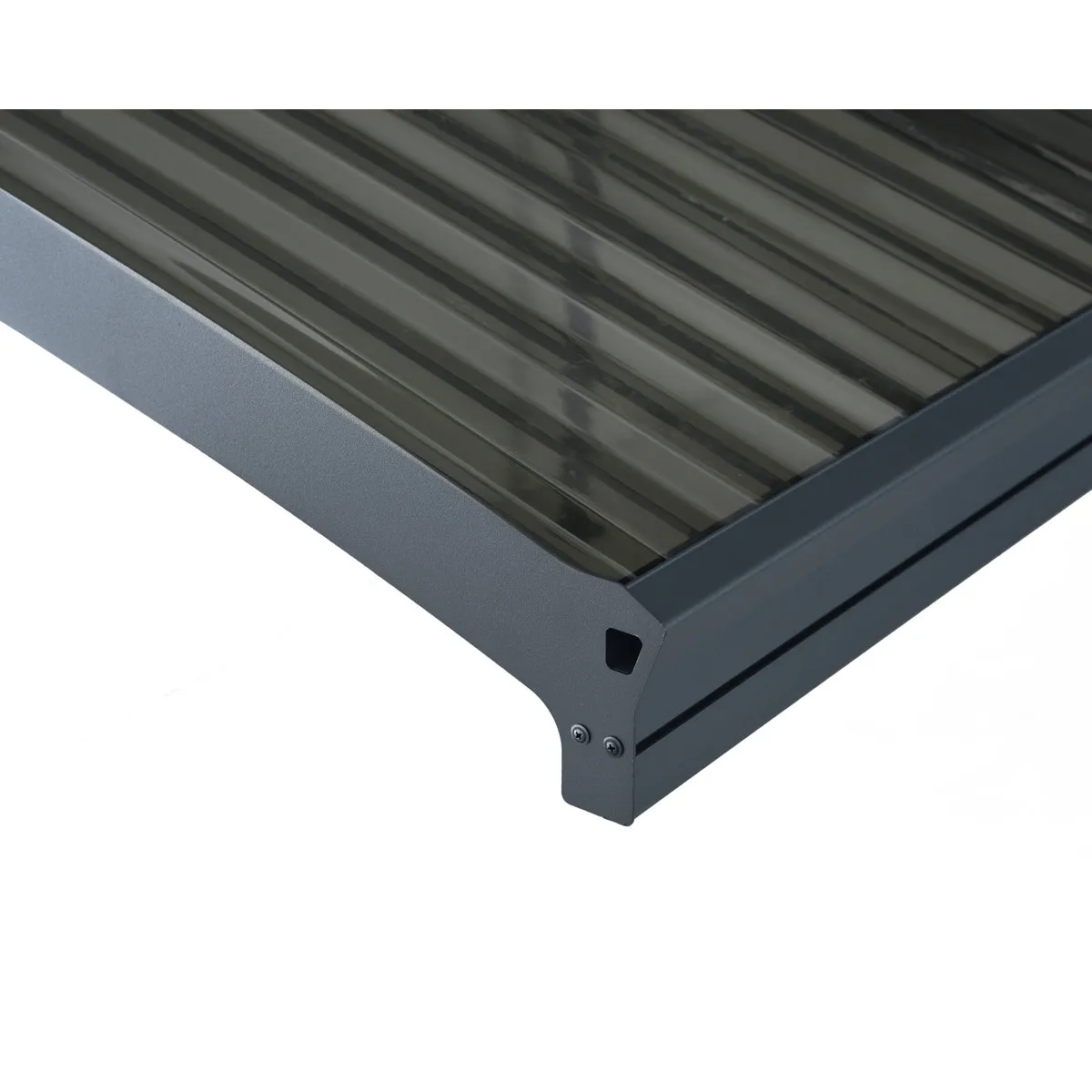

The roof is constructed from virtually unbreakable, corrugated polycarbonate panels with a solar grey finish. These panels allow natural daylight to pass through while providing up to 100% protection against harmful UV rays. The durable roofing material is designed to resist cracking, discolouration and brittleness over time, helping the carport maintain its appearance and performance in changing outdoor conditions.

A robust powder-coated aluminium frame provides a strong and corrosion-resistant structure, while galvanised steel connectors add further durability and stability. The frame is designed for long-term outdoor use and requires minimal maintenance, making the carport a practical alternative to a conventional garage.

An integrated guttering system and gutter heads help collect and direct rainwater away from the roof, providing effective drainage during wet weather. The structure can also be used as a covered outdoor area for garden furniture, a seating space or other outdoor activities when vehicle protection is not required.

The Atlas carport is supplied with pre-drilled profiles, pre-cut panels and the required screws for assembly. Its modular construction also allows the structure to be dismantled and relocated when required. Installation requires a suitable solid foundation, such as concrete or paving, with appropriate anchoring to provide secure positioning.

Specifications:

• Product Type: Carport
• Model: Atlas 5000

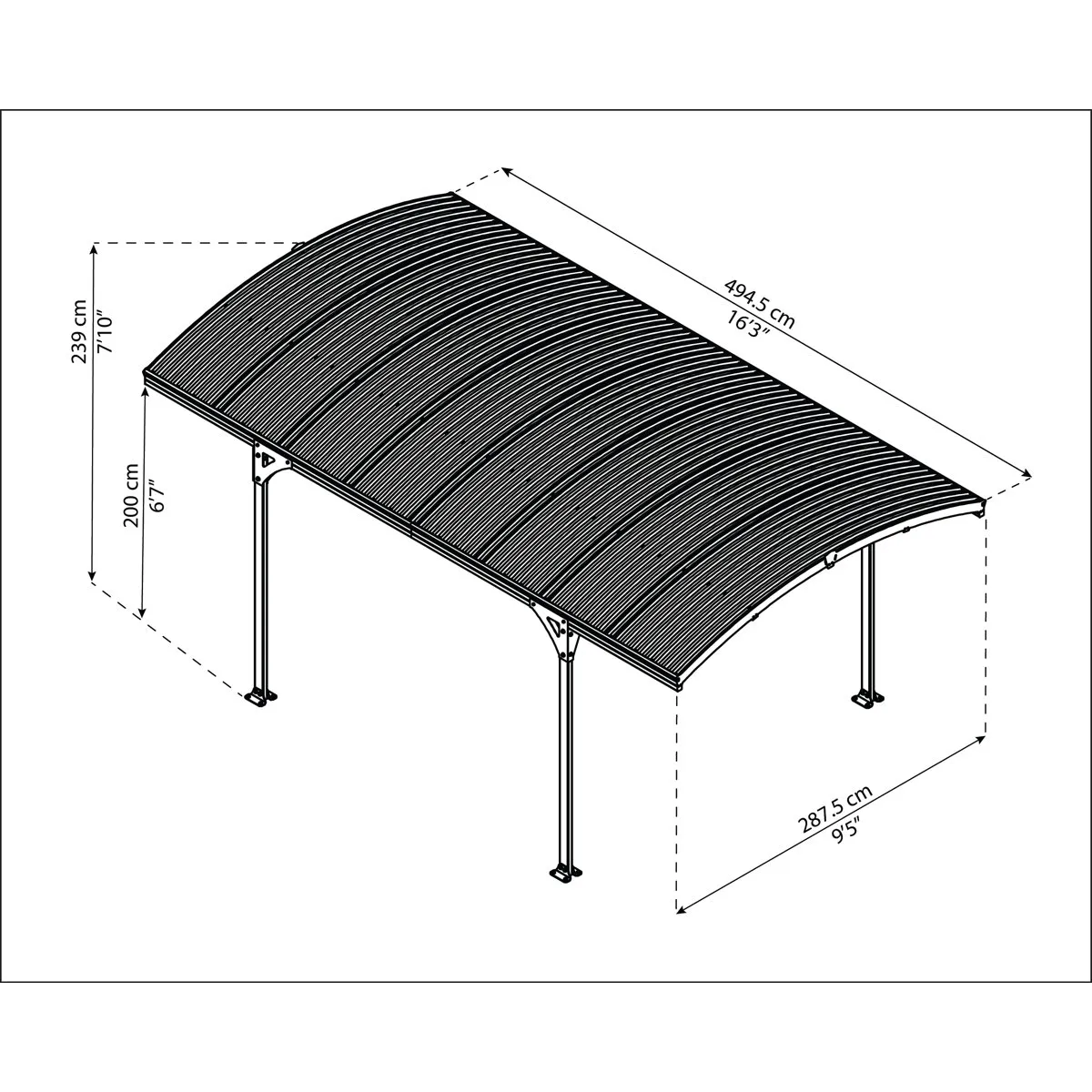

• Overall Width: 2.88 m
• Overall Depth: 4.95 m
• Overall Height: Approximately 2.18 m
• Covered Area: Approximately 14.2 m²
• Vehicle Capacity: 1 car
• Frame Material: Powder-coated aluminium
• Connector Material: Galvanised steel
• Roof Material: Corrugated polycarbonate
• Roof Colour: Solar grey
• Frame Colour: Grey
• Roof Type: Hardtop
• Roof Panels: Twin-wall corrugated polycarbonate
• UV Protection: Up to 100% protection from harmful UV rays
• Opening Width: Approximately 2.0 m high x 4.945 m wide
• Side Height: Approximately 2.0 m
• Roof Load Capacity: Up to 100 kg
• Snow Load Capacity: Up to 220 kg
• Wind Rating: Up to 90 km/h
• Drainage: Integrated gutters and gutter heads
• Durability: Water resistant, weather resistant, UV resistant, fade resistant, rust resistant and mould resistant
• Maintenance: Low maintenance

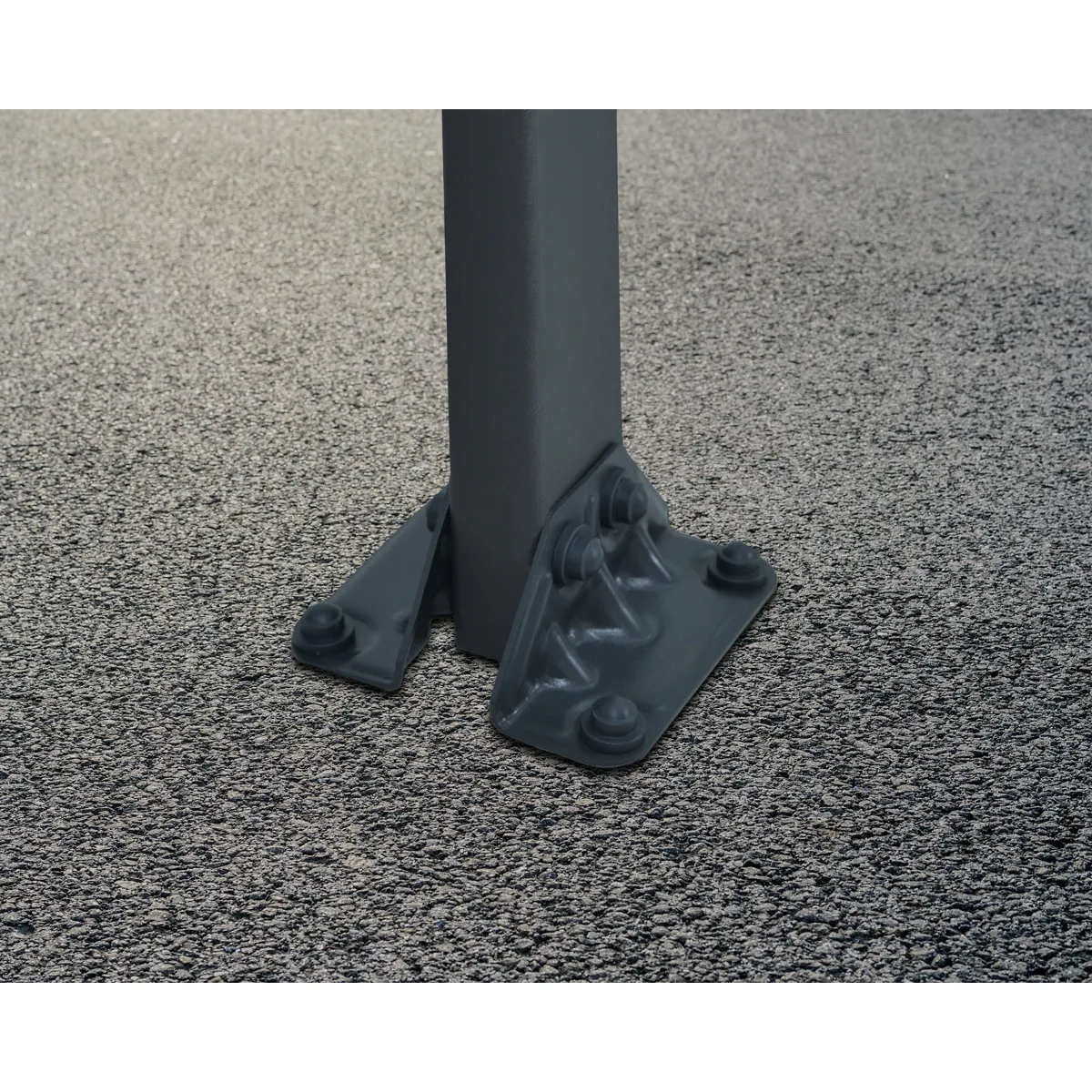

• Installation: Requires assembly and ground anchoring
• Recommended Assembly: 2 people
• Suitable Foundation: Concrete or paving
• Usage: Vehicle shelter, carport, patio cover or outdoor canopy
• Warranty: 10-year limited product warranty
• Product Weight: Approximately 120 kg
